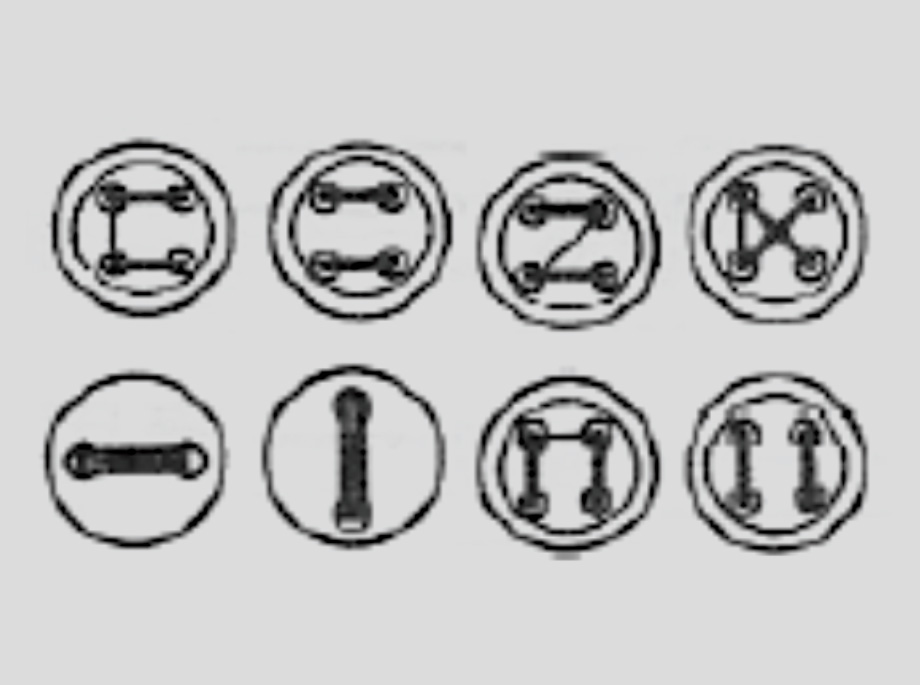

Built-in 33 Different Sewing Patterns

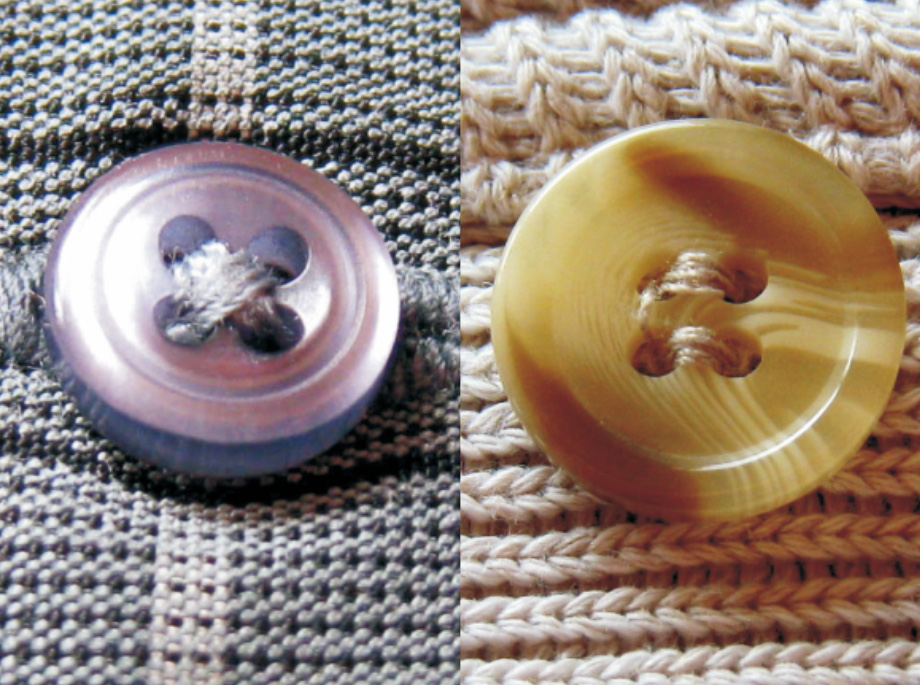

Handles Various Sewing Specifications
Built-in 33 Different Sewing Patterns
Handles Various Sewing Specifications
Built-in 33 Different Sewing Patterns
Handles Various Sewing Specifications
 |  |  |  |  |  |  |
| ZJ1903D-301-3/04-V4 | DPx17（#12） | 2700rpm | Φ8~Φ30mm | 0.1mm~12.7mm | Standard 13mm / Maximum 17mm | Oscillating Hook Structure |
| ZJ1903D-301-3/04-T-V4 | DPx17（#12） | 2700rpm | Φ8~Φ30mm | 0.1mm~12.7mm | Standard 13mm / Maximum 17mm | Oscillating Hook Structure |
| Needle Bar Stroke | 45.7mm | Storage Capacity | Maximum 20,000 stitches | Standard Number of Patterns | 50 patterns |
| Number of Storable Data | 50 patterns (can be expanded to 200 patterns) | Enlargement/Reduction Function | 20~200% (in 1% increments) | Storage Medium | EE-Rom/EP-Rom |
301: From extra-small buttons to large buttons (outer diameter Φ8-Φ30)
T: Electronic thread tension, V4: New Zoje family-style integrated machine
