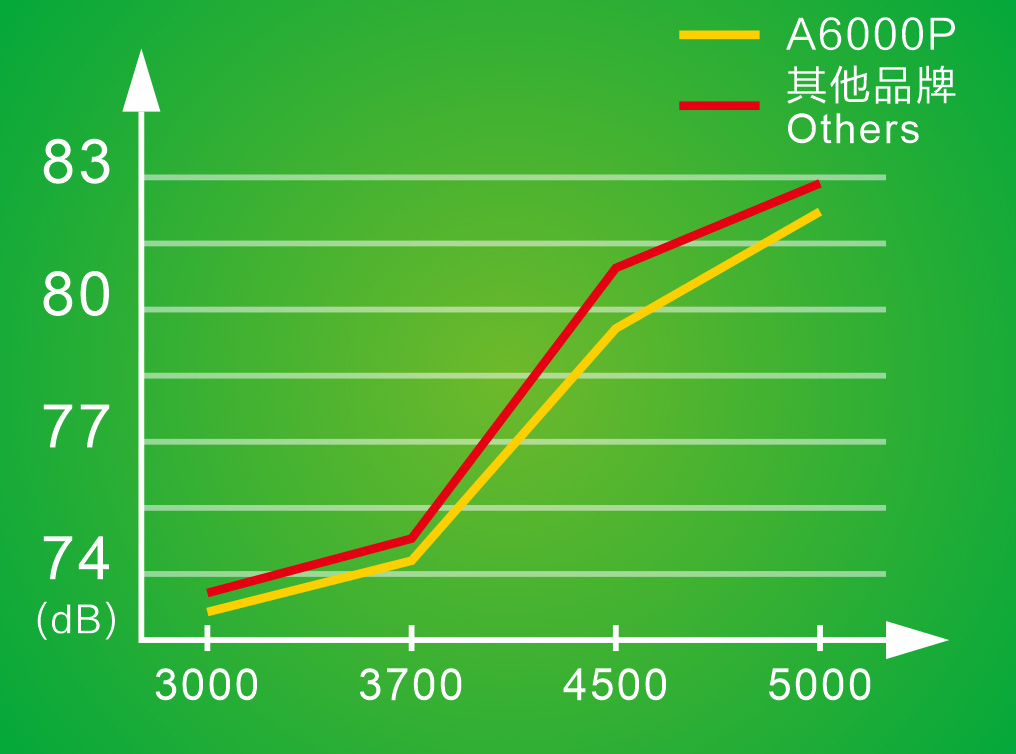

Optimized Body, Low Vibration and Noise, Lighter and Faster (Repeated)

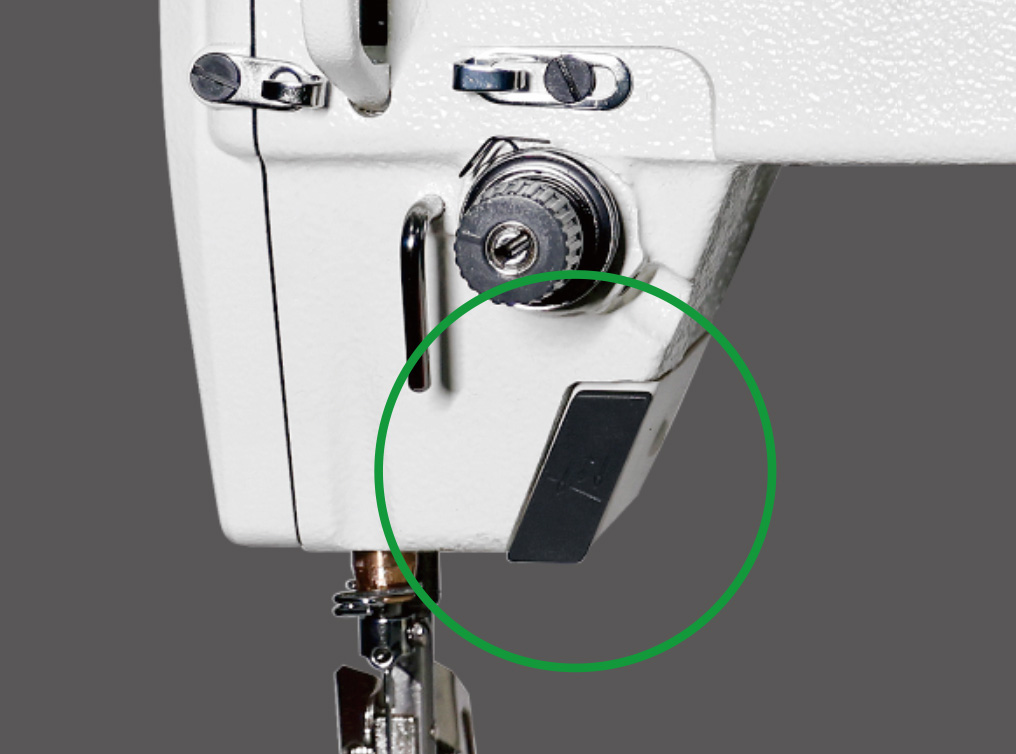

Precise Needle Positioning, Convenient and Efficient

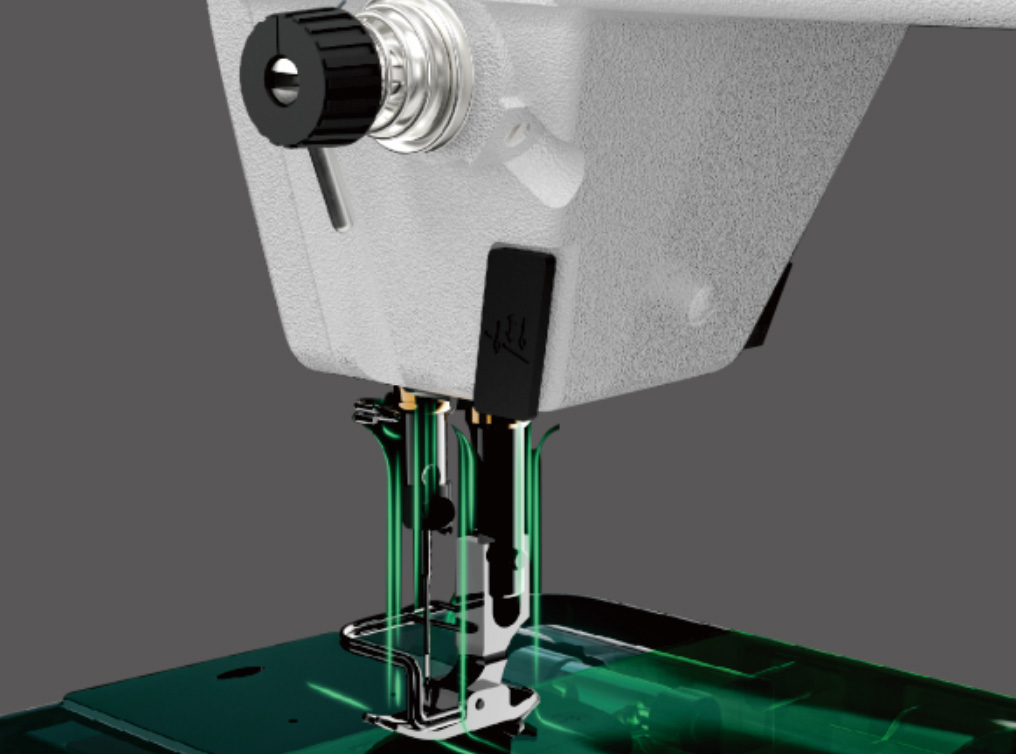

Soft Start, No Thread Breakage or Skipped Stitches at Start

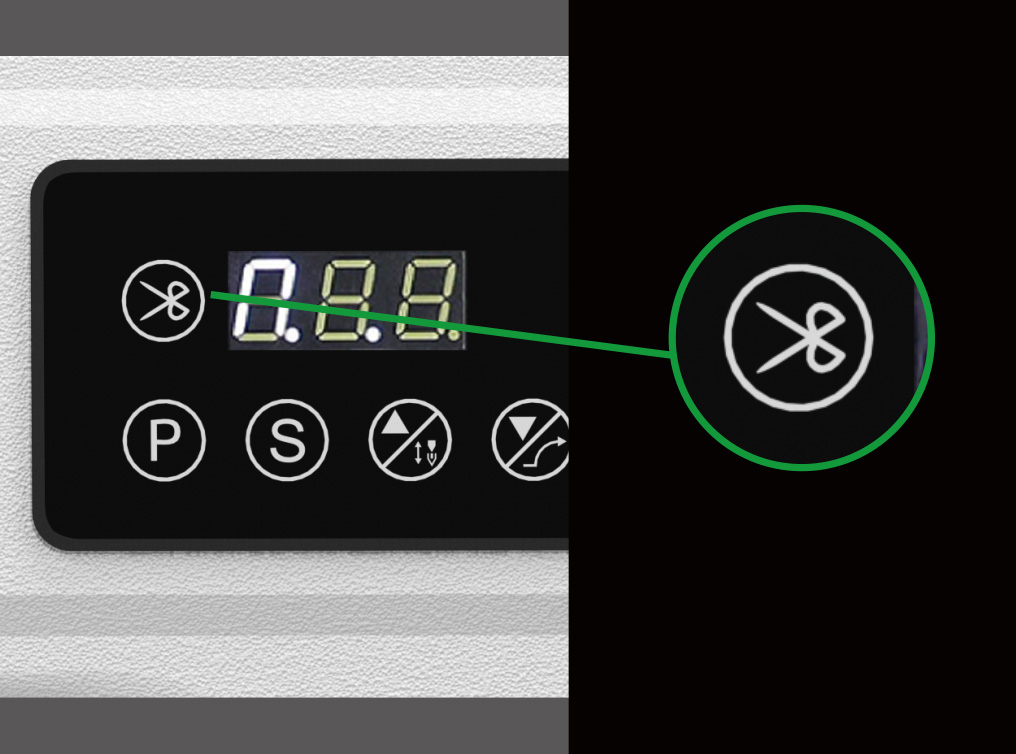

Model A6000P-D Automatic Thread Trimming Improves Work Efficiency
Optimized Body, Low Vibration and Noise, Lighter and Faster (Repeated)
Precise Needle Positioning, Convenient and Efficient
Soft Start, No Thread Breakage or Skipped Stitches at Start
Model A6000P-D Automatic Thread Trimming Improves Work Efficiency
Optimized Body, Low Vibration and Noise, Lighter and Faster (Repeated)
Precise Needle Positioning, Convenient and Efficient
Soft Start, No Thread Breakage or Skipped Stitches at Start
Model A6000P-D Automatic Thread Trimming Improves Work Efficiency
 |  |  |  |  |  | Lubricating Oil | Motor Power |
| A6000P-G/D | Light/Heavy Material | 5000 Stitches/min | 5mm | Manual Lift 5.5mm, Knee Lift 13mm | DBX1 11#-18# | 10# White Oil | 220V/550W |
| A6000P-G/D-S7 | Light/Heavy Material | 4000 Stitches/min | 7mm | Manual Lift 5.5mm, Knee Lift 13mm | DBX1 11#-18# | 10# White Oil | 220V/550W |
| A6000P-G/D-5 | Heavy Material | 4000 Stitches/min | 5mm | Manual Lift 5.5mm, Knee Lift 13mm | DPX5 18#-21# | 10# White Oil | 220V/550W |
| A6000P-G/D-5-S7 | Heavy Material | 4000 Stitches/min | 7mm | Manual Lift 5.5mm, Knee Lift 13mm | DPX5 18#-21# | 10# White Oil | 220V/550W |
| A6000P-G/D-H | Heavy Material | 4000 Stitches/min | 7mm | Manual Lift 5.5mm, Knee Lift 13mm | DPX5 20#-23# | 10# White Oil | 220V/550W |
5: Standard shuttle for heavy fabrics (default: standard shuttle), H: Large rotary hook for heavy fabrics (default: standard shuttle), S7: 7mm stitch length (default: 5mm stitch length),
D: Automatic thread trimming (special mechanism, default: no automatic trimming), G: Domestic rotary hook (default: imported rotary hook).
