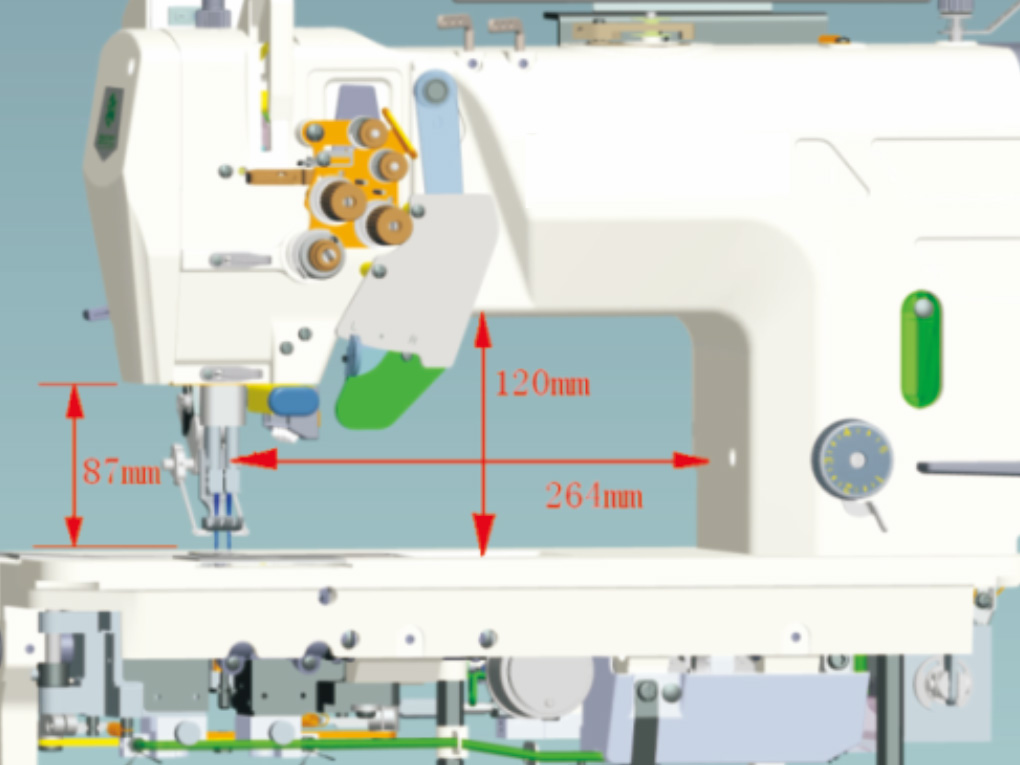

Spacious Operating Area for More Comfortable Sewing

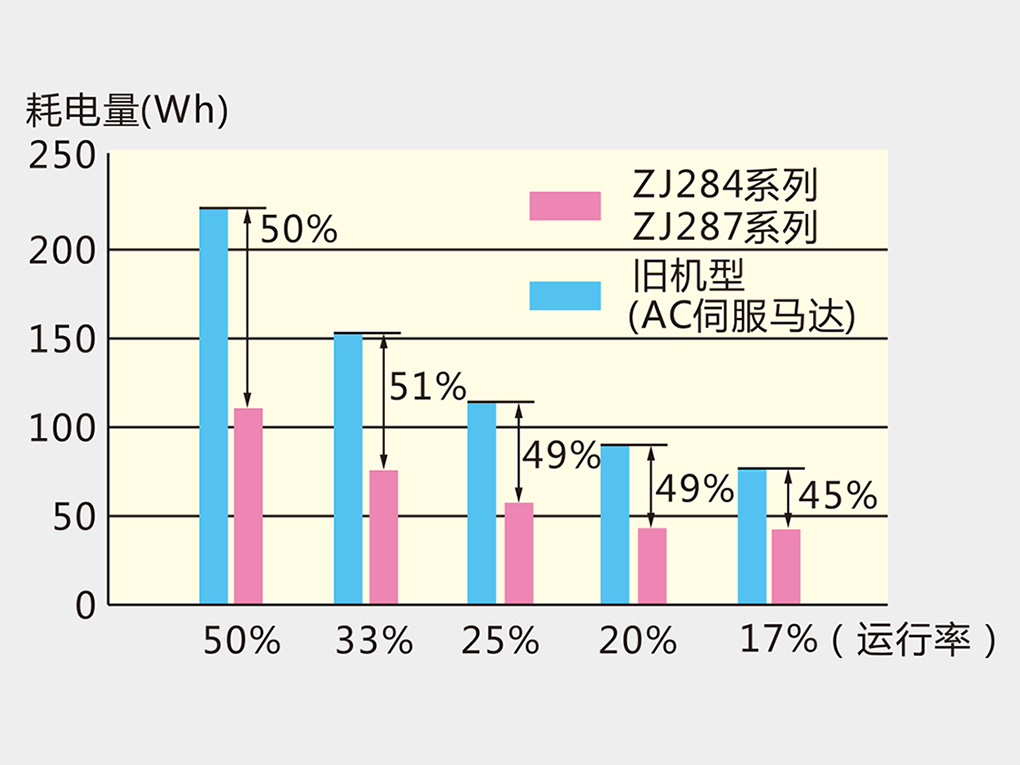

Energy Saving, Up to 50% Power Reduction

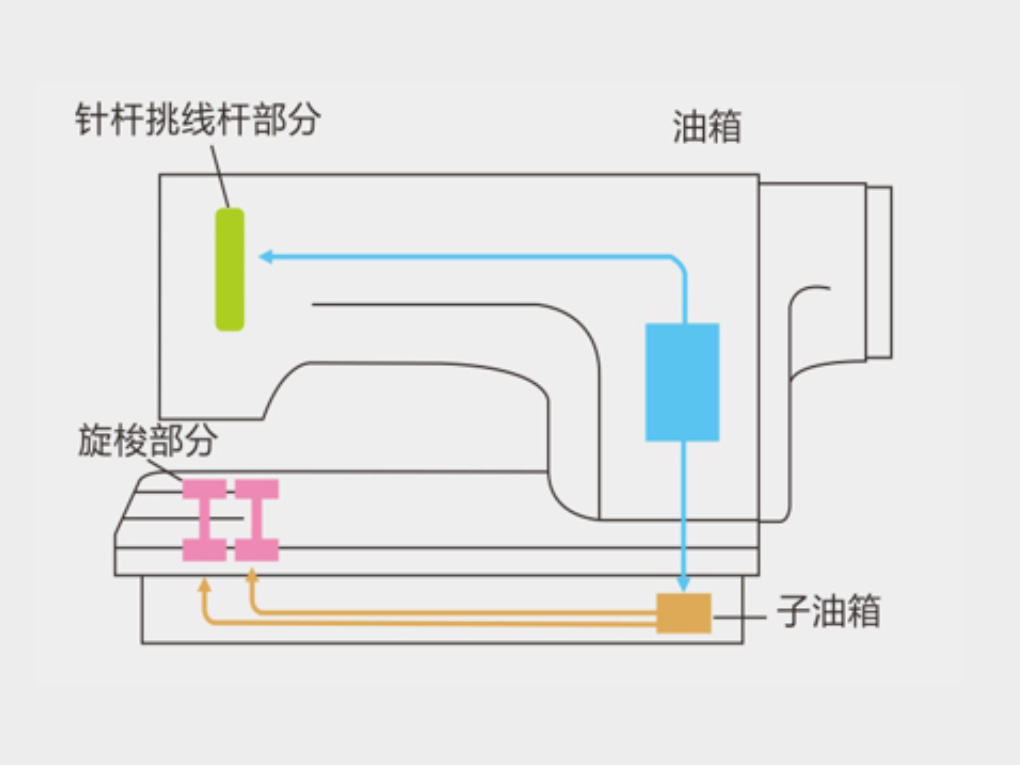

Uses Micro-Oil System, Reduces Oil Contamination

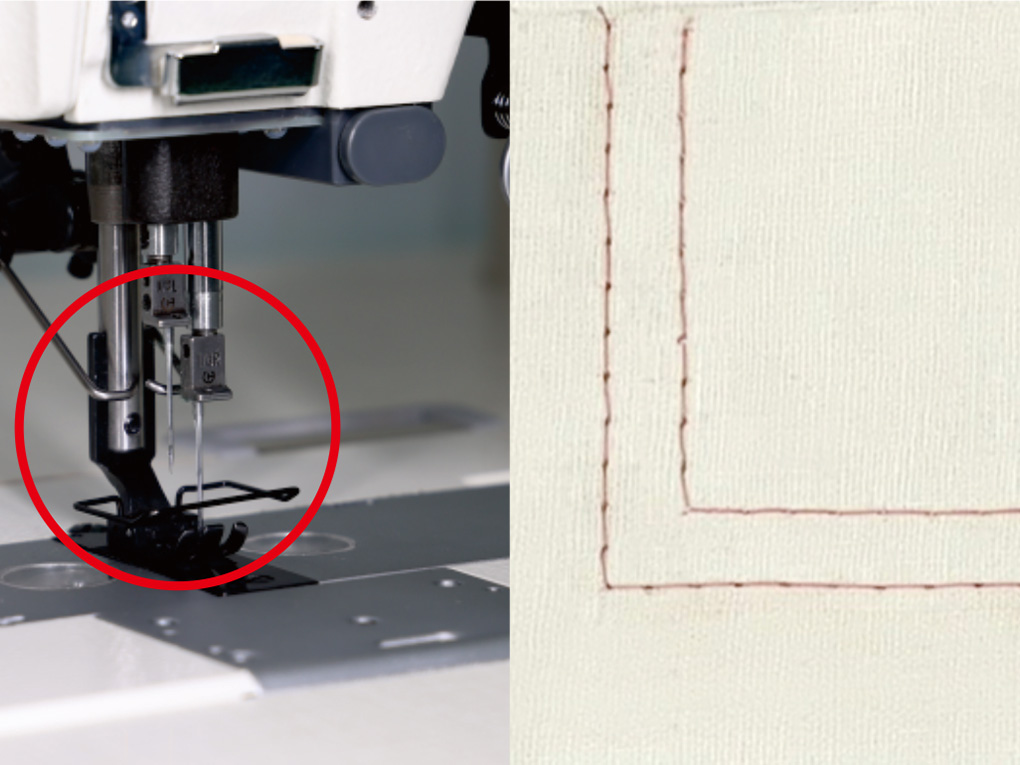

Needle Bar Separation for Easy Right-Angle Sewing

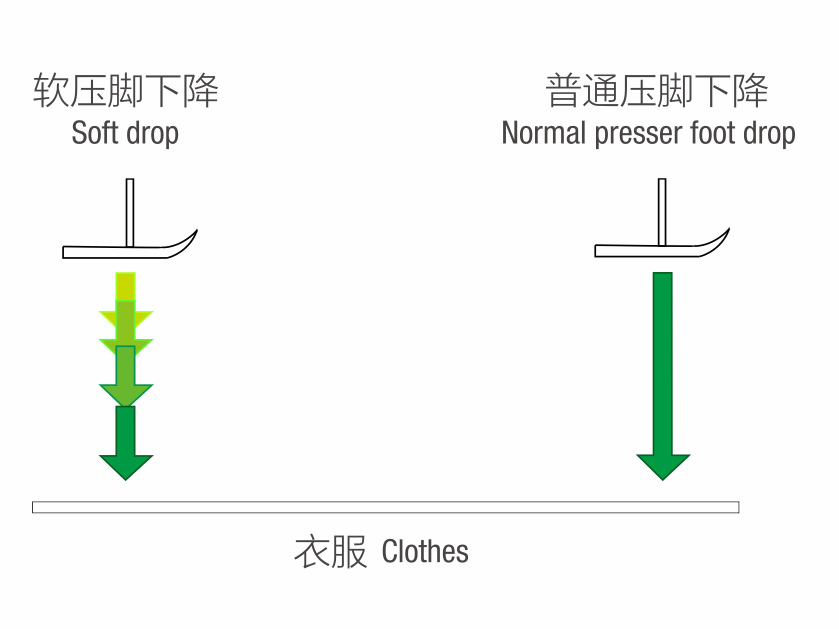

Soft Presser Foot Descent Prevents Damage to High-End Fabrics

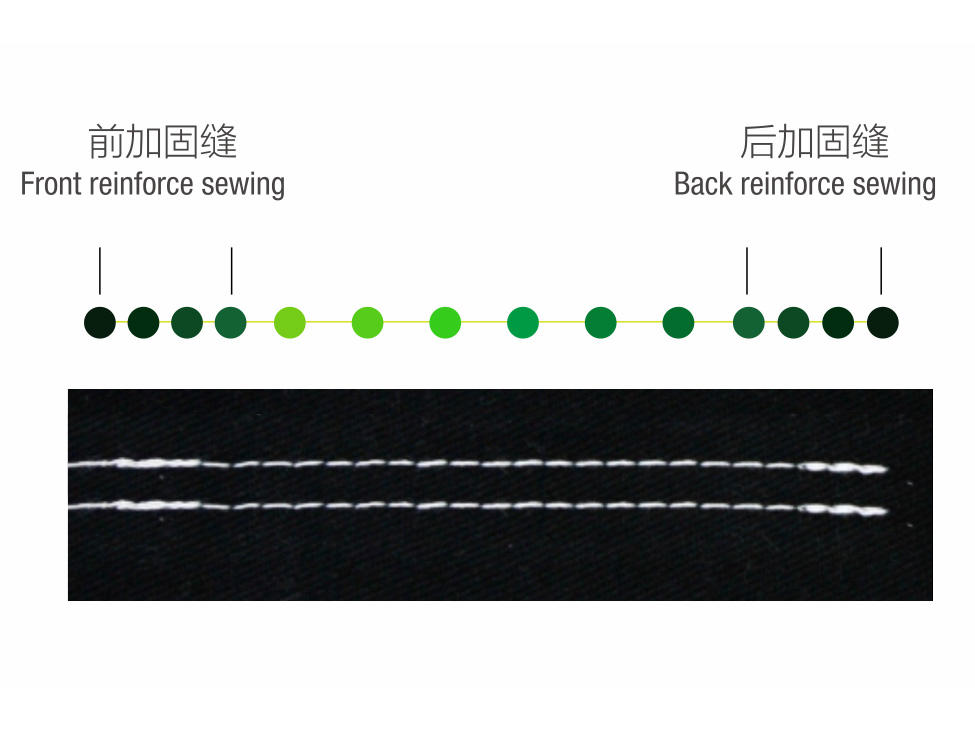

Decorative Reinforcement Stitch: Achieves Overlapping Stitch Holes for Back-and-Forth Reinforcement

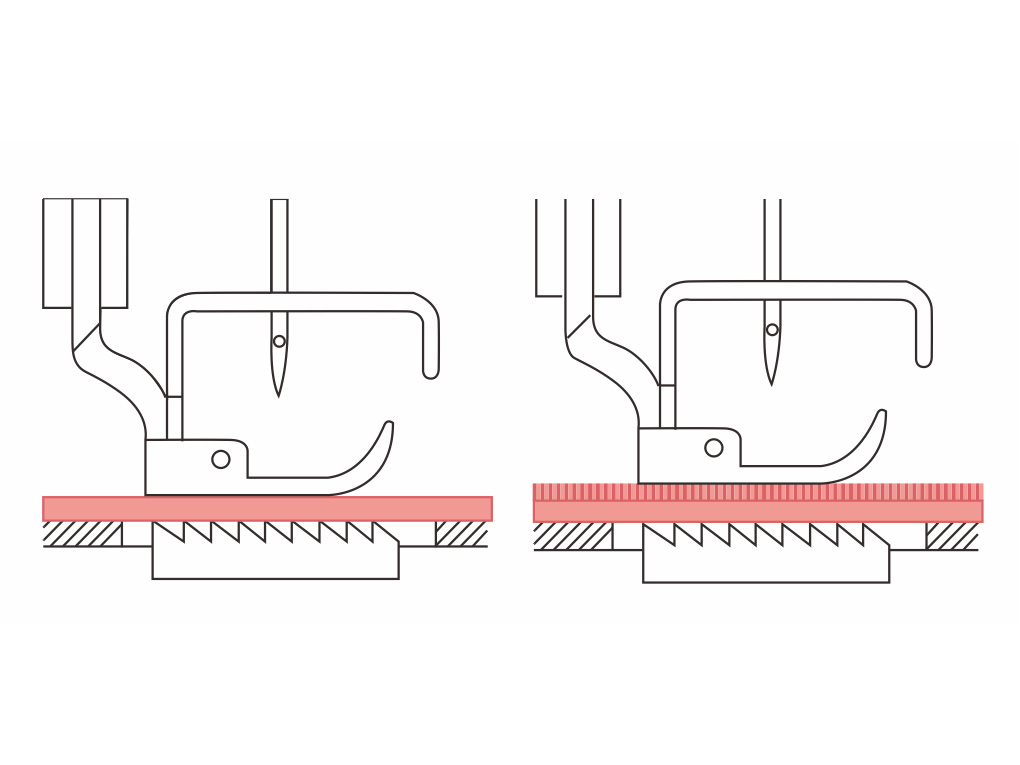

Improves Sewing Quality: Uses the Most Suitable Floating Presser Foot for Floating Stitches, Reducing Damage to the Sewn Product.
Spacious Operating Area for More Comfortable Sewing
Energy Saving, Up to 50% Power Reduction
Uses Micro-Oil System, Reduces Oil Contamination
Needle Bar Separation for Easy Right-Angle Sewing
Soft Presser Foot Descent Prevents Damage to High-End Fabrics
Decorative Reinforcement Stitch: Achieves Overlapping Stitch Holes for Back-and-Forth Reinforcement
Improves Sewing Quality: Uses the Most Suitable Floating Presser Foot for Floating Stitches, Reducing Damage to the Sewn Product.
Spacious Operating Area for More Comfortable Sewing
Energy Saving, Up to 50% Power Reduction
Uses Micro-Oil System, Reduces Oil Contamination
Needle Bar Separation for Easy Right-Angle Sewing
Soft Presser Foot Descent Prevents Damage to High-End Fabrics
Decorative Reinforcement Stitch: Achieves Overlapping Stitch Holes for Back-and-Forth Reinforcement
Improves Sewing Quality: Uses the Most Suitable Floating Presser Foot for Floating Stitches, Reducing Damage to the Sewn Product.
 |  |  |  |  |  |  |  |  |  |  |  |
| ZJ2842-BD-D3-3/02 | DPx5 11#-16# | 4 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2842-5-BD-D3-3/02 | DPx5 14#-22# | 5 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2845-BD-D3-3/02 | DPx5 11#-16# | 5 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2845-5-BD-D3-3/02 | DPx5 14#-22# | 5 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2872-BD-D3-3/02 | DPx5 11#-16# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2872-5-BD-D3-3/02 | DPx5 14#-22# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2875-BD-D3-3/02 | DPx5 11#-16# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2875-5-BD-D3-3/02 | DPx5 14#-22# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2842P-BD-D3-3/02 | DPx5 11#-16# | 4 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2842P-5-BD-D3-3/02 | DPx5 14#-22# | 5 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2845P-BD-D3-3/02 | DPx5 11#-16# | 5 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2845P-5-BD-D3-3/02 | DPx5 14#-22# | 5 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2872P-BD-D3-3/02 | DPx5 11#-16# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2872P-5-BD-D3-3/02 | DPx5 14#-22# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2875P-5-BD-D3-3/02 | DPx5 14#-22# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2875P-BD-D3-3/02 | DPx5 11#-16# | 7 | 7-13 | ★ | 6.4 | ★ | ★ | ★ | 3000 | ||
| ZJ2842-BD-3/02 | DPx5 11#-16# | 4 | 7-13 | ★ | 6.4 | ★ | ★ | 3000 | |||
| ZJ2845-BD-3/02 | DPx5 11#-16# | 4 | 7-13 | ★ | 6.4 | ★ | ★ | 3000 |
*Note: The thread trimming method of ZJ2842P-BD-D3 is straight knife trimming (quickly replace different sizes of needle positions)
P: Straight knife; Default: Rotary knife, 5: Thick material; Default: Medium-thick material, D3: Automatic thread trimming, automatic thread pulling, automatic backstitch
