Technical Parameters

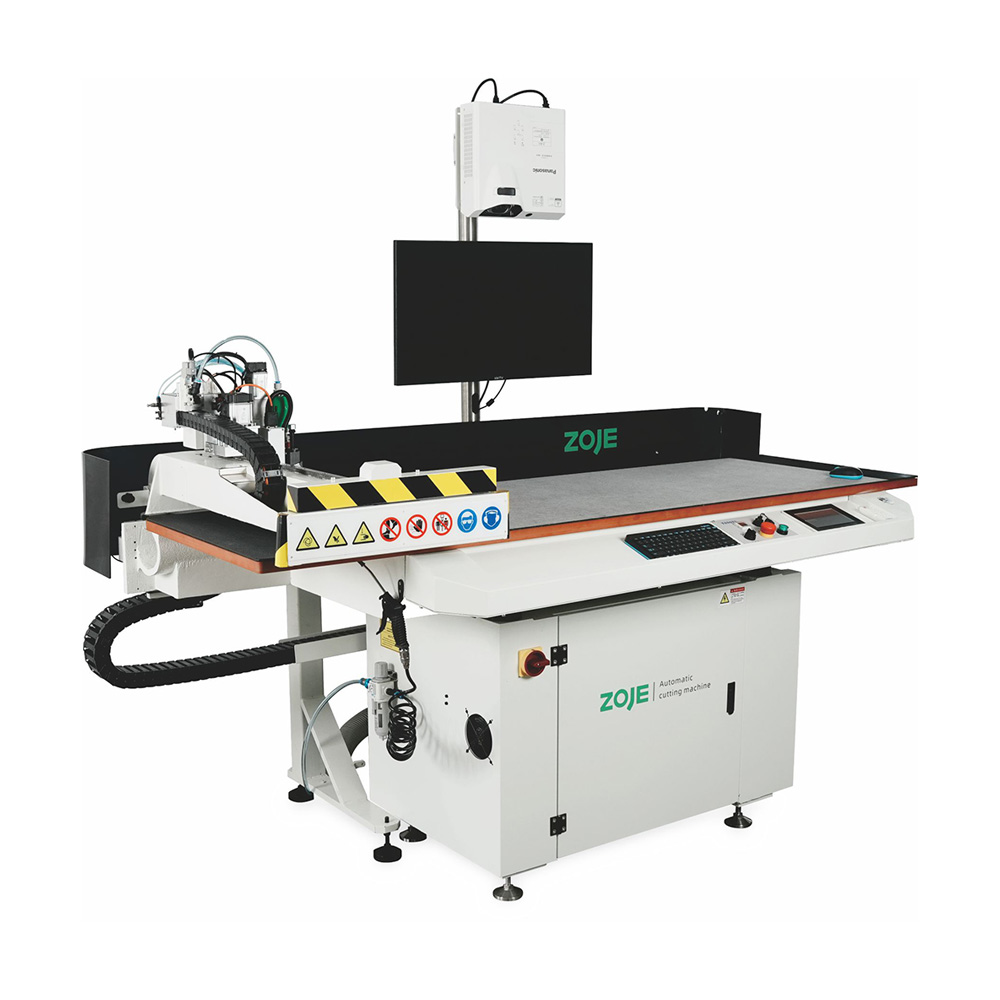

| Machine Dimensions | 2150mm×1250mm×2850mm |
| Cutting Range | 1600mm×600mm |
| Applicable Materials | Leather / Sponge / Mesh Fabric / Midsole Board |
| Cutting Thickness | Sponge ≤ 35mm, Flexible Materials ≤ 20mm, Rigid Materials ≤ 8mm |
| Data Formats | Supports common drawing software formats such as CDR, CAD, PLT, DXF |

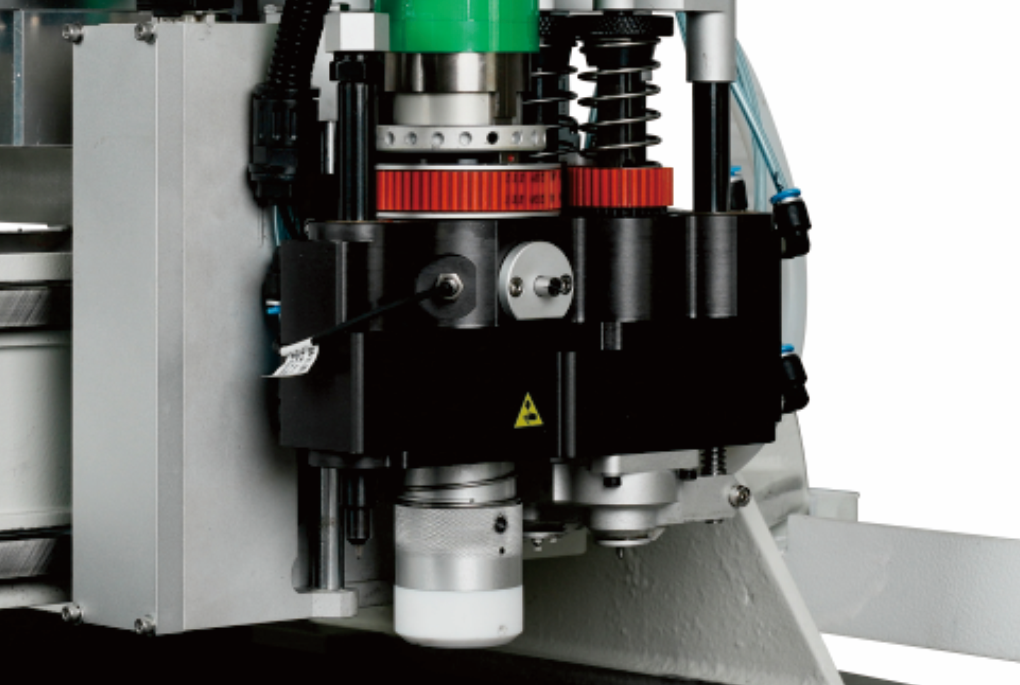

| Cutting Tool Configuration | 1 vibrating knife, 2 punch needles, 1 drawing pen |
| Feeding Method | Manual Feeding |
| Cutting Precision | 0.1mm | Rated Voltage | AC380V, 50HZ |
| Cutting Speed | 1-900mm/s | Rated Power | 7.5KW |
| Working Air Pressure | 0.6-0.8MPa | Machine Weight | 850Kg |
